The simple program **client** is an example how to communicate with the server. The client reads its instructions
from stdin so that it should not be difficult for applications to communicate with the server.

The server and client use a TCP connection on port 4242. The server should be allowed to write on /tmp or \tmp on Windows (CREATE it, if necessary).

To launch the client/server application, first launch the server:

`pigale -server` (serves one client at a time)

then the client:

`client < data`

or a pipe

`cat data | client` (under Windows: `type data | client`).

If the Client does not run on the same machine as the server:

`client www.computer.com < data`

An example file **Clientdata.txt** and three graphs are provided. If you run

`./client < Clientdata.txt`

you should receive 8 png files and a graphml file containing the last graph created.

The commands that can be used are most of the ones found in QT/Action.h, that is all the Pigale macros plus some specific ones:

Command | Argument | |

RS_GRAPH | graph filename | load a graph (on the server side) |

RC_GRAPH | graph filename | load a graph (from the client side) |

N_GRAPH | creates an empty graph | |

N_V | number of vertices | create n vertices |

N_E | pair of vertices | create an edge |

PNG | get a png image of the current drawing | |

RS_SAVE_GRAPH | graph filename with extension | ask the server to save the current graph and send it to the client (the file format is determined by the extension) |

N | number of vertices |

M | number of edges |

SIMPLE | simple graph |

PLAN | planar |

OPLAN | outer planar |

SR | serie-parallel |

MPLAN | triangulated planar graph |

BI | bipartite graph |

MBI | max planar bipartite graph |

REG | regular |

C1 | connected |

C2 | 2-Connected |

OPT | 3-Connected |

MIN_D | minimal degree |

MAX_D | maximal degree |

COORD | retrieve coords |

VLAB | retrieve labels (long integers) |

GEN_N1 | number of vertices | an integer |

GEN_N2 | number of vertices | an integer |

GEN_M | number of edges | an integer |

All the other commands are the standart Pigale macros.

GEN_GRID | grid | GEN_N1, GEN_N2 |

GEN_COMPLETE | complete graph | GEN_N1 |

GEN_COMPLETE_BIP | complete bipartite graph | GEN_N1, GEN_N2 |

GEN_RANDOM | planar or not | GEN_N1 GEN_M |

GEN_PLANAR | planar | GEN_M |

GEN_PLANAR_2C | planar 2-connected | GEN_M |

GEN_PLANAR_3C | planar 3-connected | GEN_M |

GEN_PLANAR_3R_2C | planar 3-regular 2-connected | GEN_M |

GEN_PLANAR_3R_3C | planar 3-regular 3-connected | GEN_M |

GEN_PLANAR_3R_D4C | planar 3-regular 3-connected without 4-separator | GEN_M |

GEN_PLANAR_4R_C | planar 4-regular connected | GEN_M |

GEN_PLANAR_4R_2C | planar 4-regular 2-connected | GEN_M |

GEN_PLANAR_4R_3C | planar 4-regular 3-connected | GEN_M |

GEN_PLANAR_4R_BIP | planar 4-regular bipartite | GEN_M |

GEN_PLANAR_BIP | planar bipartite | GEN_M |

GEN_PLANAR_BIP_2C | planar 2-connected bipartite | GEN_M |

GEN_PLANAR_BIP_3C | planar 3-connected bipartite | GEN_M |

GEN_P_OUTER_N | maximal outerplanar | GEN_N1 |

GEN_P_OUTER_NM | outerplanar | GEN_N1, GEN_M |

DUAL | |

DUAL_G | without the exterior vertex |

ANGLE | |

ANGLE_G | without the exterior face |

CONNECT | add edges |

CONNECT_V | add vertices |

BICONNECT | biconnect a planar graph adding edges |

BICONNECT_NP | biconnect adding edges |

BICONNECT_NP_V | biconnect adding vertices |

TRIANGULATE_ZZ | triangulate adding edges |

TRIANGULATE_V | triangulate adding vertices |

TRIANGULATE_3C | triangulate a 3-connected planar graph adding edges |

QUADRANGULATE_V | quadrangle a bipartite graph, adding vertices |

BISSECT_ALL_E | bisect all edges |

REMOVE_ISOLATED_V |

REMOVE_LOOPS |

REMOVE_MULTIPLE_E |

REMOVE_BRIDGES |

SCHNYDER_E | Schnyder algorithm: the graph is first made maximal by adding edges |

SCHNYDER_V | Schnyder algorithm: the graph is first made maximal by adding vertices |

FPP_FARY | Fraysseix, Pach, Pollack algorithm |

POLYLINE | Bonichon's algorithm (3-connected planar graph) |

CCD | Convex drawing (3-connected planar graph) |

CD | Optimal convex drawing by Bonichon |

TUTTE_CIRCLE | some edges are added before using Tutte's barycentric representation |

TUTTE | Tutte's barycentric representation |

SPRING_PM | spring embedder preserving the map |

JACQUARD | spring embedder for planar graphs (Jacquard) |

CURVES | spring embedder using curves |

VISION | visibility algorithm for planar graphs |

CONTATC_BIPARTI | representation of planar bipartite graphs by contact of segments |

FPP_RECTI | kind of visibility representation based on FPP_FARY |

GVISION | visibility algorithm generalized to non-planar graphs |

T_CONTACT | representation of a planar graph by contact of T |

EMBED-3d | 3^{d} representations |

EMBED-3d_SCHNYDER | representation on S^{2} of a planar graph |

KURATOWSKI | extract a Kuratowski subdivision of a non-planar graph |

COTREE_CRITICAL | extract a cotree critical subgraph of a non-planar graph |

COLOR_NON_CRITIC | color non-critical cotree edges of a non-planar graph |

NPSET | |

FIND_MAX_PLANAR | heuristic to find a maximal planar subgraph in a non-planar graph |

NETCUT | partition a graph in a prescribe number of classes |

SYMETRIE | heuristic to detect a symetrie in a graph |

USE_GEOMETRIC_CIR | |

USE_LRALGO_CIR | |

COLOR_BIPARTI | |

COLOR_EXT_FACE | |

RESET_COLORS |

ORIENT_EDGES |

ORIENT_INF |

ORIENT_TRICON |

ORIENT_BIPARTITE |

ORIENT_SCHNYDER |

ORIENT_BIPOLAR |

ORIENT_BIPOLAR_NON_PLANAR |

TEST_1 |

TEST_2 |

TEST_3 |

Command are separated by **:** and arguments by **;**.

For example, the line

`RC_GRAPH;ex.graphml`

asks to transfer the file ex.graphml from the client and read the graph.

- lines starting with '#' are comments

- lines starting with ':' modifies the client-server behavior:

- :D debugging mode
- :! signals the end of file and disconnects from the server

Whether under Linux or Windows, use **/** and not **\** inside path names.

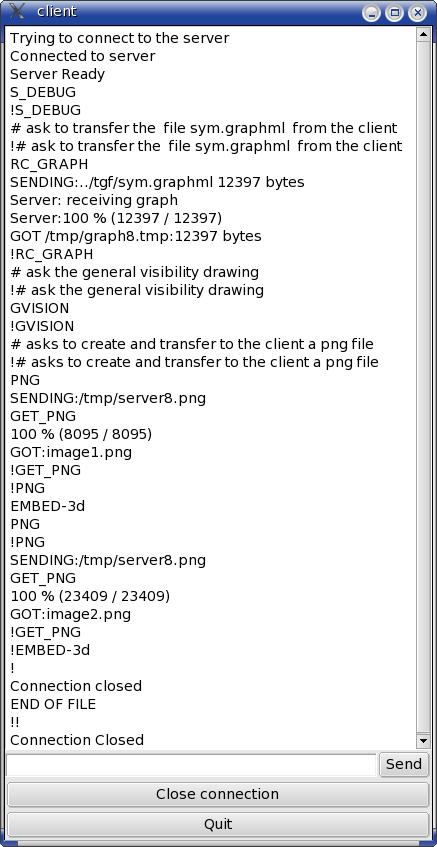

:D

# ask to transfer the file sym.graphml from the client

RC_GRAPH;../tgf/sym.graphml

# ask the general visibility drawing

GVISION

# asks to create and transfer to the client a png file

PNG

EMBED-3d:PNG

:!

Last modified: Tue Jan 29 12:01:58 CET 2008
